ISO 9001 Certified

Jacksonville Machine Inc. was established in 1919 and has evolved into one of the largest state-of-the-art CNC machine shops in Illinois. Centrally located in the heartland of Illinois allows JMI to provide machine shop services to numerous customers in Illinois and throughout the Mid-West. Jacksonville Machine Inc. specializes in CNC machining, but also provides services such as manual machining, welding, grinding, fabrication and assembly. With a diverse line of equipment, ISO certification, and a qualified team of machinists JMI is capable of performing most machine shop services.

Overview

Customer Service

Jacksonville Machine Inc. is a state-of-the-art machine shop specializing in CNC machining. With over 30 different Mazak CNCs on the floor, parts of both complex and moderately simple design are produced.

Quality

Top-of-the-line fully computerized software is used to ensure all orders that go through the shop are accessible on any computer. This is important for easy traceability, accountability, and data collection.

On-Time Delivery

Jacksonville Machine Inc. operates its machine shop using only top-of-the-line computer software and CNC machining equipment. JMI understands how this is essential in keeping cost down and providing quality parts at an affordable price, while maintaining On-Time Delivery.

Providing Precision Machining Since 1919



Jacksonville Machine Inc. operates its machine shop using only top-of-the-line computer software and CNC machining equipment. JMI understands how this is essential in keeping cost down and providing quality parts at an affordable price.

Overview

Owners

Company History

Jacksonville Machine & Boiler Works was established in 1919 by Joseph Rodems and his son Alfed. Its primary work was repairing agriculture and factory equipment.

Joseph was already deceased when the family was hit with the unexpected death of Alfred. This led Alfred’s only son Don to make the decision to purchase the shop from his mother at a young age. As the years passed, Don successfully expanded the shop to ten employees. As the company continued to flourish three of Don’s five children (Jeff, Robert, and Donna) joined the team. Once incorporated in 1992 the name changed to Jacksonville Machine Inc.

With the company on a solid foundation, Don made plans to pass the family business on to the next generation. Facing the everyday struggles of owning a business everyone soon realized continuous growth would be important for the survival of the business. JMI shifted their focus on getting the shop ISO-9001 registered. In addition to the ISO registration they implemented stringent quality control procedures throughout the shop. Epicor software was added for more efficient and thorough quoting, scheduling, purchasing, inventory control, and accounting. These changes allowed Jacksonville Machine to broaden its capabilities and diversify its customer base. All this hard work paid off as Jacksonville Machine received their ISO Certification in 2002.To continue in the training to eventually pass the company on to the next generation JMI entrusted in their employees. They started by placing their best employees in positions of supervising and managing both employee performance and quality. It is evident that JMI has a strong history and is very capable of meeting their customer needs and expectations.

Request a Quote

Personal Information

Please send us your information and a represenative will be in touch shortly.


  217-243-1119

Capabilities

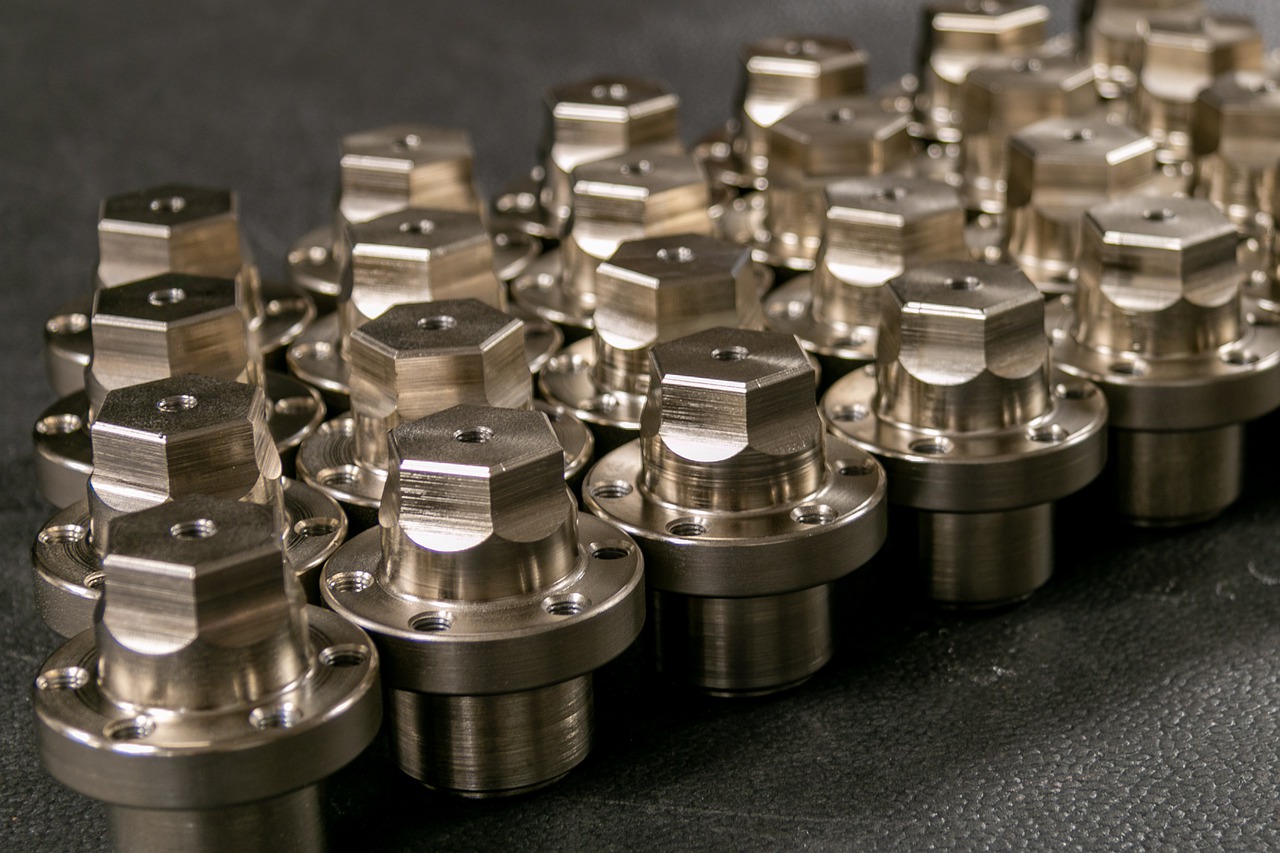

Jacksonville Machine Inc. is a state-of-the-art machine shop specializing in CNC machining. With over 30 different Mazak CNCs on the floor, parts of both complex and moderately simple design are produced. Live tooling and sub-spindles are utilized in the turning centers to produce parts as complete sets when possible. JMI can machine several different materials including Aluminum, Stainless Steel, Cold rolled Steel, Hot rolled Steel, Castings, and most plastics. JMI holds their parts to the strictest and tightest of standards.

program

CNC Vertical Machining

MAZAK VTC 300C (640 Fusion) Axis 60" x30" x31"
MAZAK VTC 300C (640 Fusion) Axis 60" x30" x31"
MAZAK VCN 530C (Smooth G) Axis 41”x20”x20”
MAZAK VCN 530C (Smooth G) Axis 41”x20”x20”
MAZAK VTC 16B (M-PLUS) Axis 40”x20”x20”
MAZAK VTC 20B (M-PLUS) Axis 44”x20”x20” (4th Axis)
MAZAK VTC 160B (640 Fusion) Axis 44”x16”x20”
MAZAK VTC 160B (640 FUSION) Axis 44”x16”x20”
MAZAK VTC 160B (640 FUSION) Axis 44”x16”x20”
MAZAK VTC 200B (640 FUSION) Axis 44”x20”x20”

program

CNC Horizontal Machining

MAZAK HCN 5000-II (MATRIX) Axis 29”x29”x31”, w/Tool Changer 80
MAZAK NEXUS 5000-II (MATRIX) Axis 29”x29”x29”, w/Tool Changer 120
MAZAK NEXUS 5000-II (MATRIX) Axis 29”x29”x29”, w/Tool Changer 120
MAZAK FH 580/40 (M-PLUS) Axis 28”x24”x26”, w/Tool Changer 30
MAZAK FH 580/40 (M-PLUS) Axis 28”x24”x26”, w/Tool Changer 60
MAZAK HTC 400 (M-PLUS) Axis 20”x20”x20”, w/Tool Changer 30
MAZAK FH5800/40 (640 FUSION) Axis 28”x24”x26”, w/Tool Changer 40
MAZAK FH5800/40 (640 FUSION) Axis 28”x24”x26”, w/Tool Changer 80
MAZAK FH5800/40 (640 FUSION) Axis 28”x24”x26”, w/Tool Changer 80

program

CNC Lathe Machining

MAZAK MULTIPLEX 6200 (640T Fusion) Live Tooling, 10" turn, & LNS Quick Load Bar Feeder
MAZAK 250 MSY & Bar Feeder (SMOOTH-G) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK 250 MSY & Bar Feeder (SMOOTH-G) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK 300II M (Matrix) Live Tooling W/ Tail Stock Swing=29” turn=16” , Z=50”
MAZAK 250II MS (Matrix) Live Tooling W/ Sub Spindle, 12” turn, Z=20”
MAZAK 250II M (Matrix) Live Tooling W/ Tail Stock 12” turn, Z=20”
MAZAK SQT 18MS & Bar Feeder (T-Plus) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK SQT 250 MSY & Bar Feeder (640T Fusion) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK SQT 250 MSY & Bar Feeder (640T Fusion) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK SQT 250 MS & Bar Feeder (T-Plus) Live Tooling w/sub-spindle, 12" turn, Z=20"
MAZAK SQT 18 (T-Plus) Tail Stock / Swing=16", Turn=12", Z=20"
MAZAK SQT 28 (T32-2) Tail Stock / Swing=20", Turn=16", Z=40"
MAZAK SQT28M (T-Plus) Live Tooling, Swing=20", Turn=17", Z=40"
MAZAK NEXUS 300 (640T Fusion) Tail Stock / Swing=29", Turn=16", Z=50"
MAZAK INTERGREX 300-IIIST (640MT PRO) Dual Spindle & Lower Turret, Swing=29", Turn=29”, Z=60"

program

Coordinate Measuring Machines

Coordinate Measuring Machines BROWN & SHARPE Automatic CMM (Global Advantage w/ scanning) Axis 27”x39”x27”
BROWN & SHARPE Automatic CMM (ONE) Axis 27”x39”x27”
BROWN & SHARPE Manual CMM (GAUGE 2000) Axis 16”x19”x12”
BROWN & SHARPE Manual CMM (GAUGE 2000) Axis 16”x19”x12”

program

Other Metrology Equipment

Starrett | Granite Surface Plate 3’ x 2’
Mitutoyo | 0”-18” Height Gage
MAHR Federal | Surface Profilometer
Phase II | Rockwell Hardness Tester

program

CAD

Solid Edge

Design at the speed of creative thought, with new subdivision modeling, lightning-fast reverse engineering.

program

CAM

Mastercam

A wide range of toolpath modules, from industry-leading 2D/3D Dynamic milling strategies to multiaxis.

program

ERP

Epicor

Epicor ERP was designed with decades of manufacturing industry insights to maximize revenue with advanced project and production management.


Location




Jacksonville Machine Inc.

2265 W Morton

Jacksonville, IL 62650


  217-243-1119
